Caster and bearing life
In order to determine the standard of caster bearing life, the caster bearing life is connected with
reliability.
The service life of rolling caster bearing is defined in revolutions (or hours of operation at a certain
speed): the caster bearing within this service life shall have preliminary fatigue damage (peeling or
defect) on any caster bearing ring or rolling body. However, no matter in the laboratory test or in
actual use, it can be clearly seen that under the same working conditions, the appearance of caster
bearings is the same, and the actual service life is very different. In addition, there are several
different definitions of caster bearing "life", one of which is the so-called "working life", which means
that the actual life of a caster bearing before damage is caused by wear and damage, which is usually
not caused by fatigue, but by wear, corrosion, seal damage and other reasons.
Basic dynamic load rating
In order to compare the anti pitting bearing capacity of caster bearing, it is specified that when the
rated life of caster bearing is one million revolutions (106), the maximum load that can be borne is
the basic rated dynamic load, expressed in C. That is, under the action of rated dynamic load C, the
reliability of this caster bearing working for one million revolutions (106) without pitting failure is 90%.
The greater C, the higher the bearing capacity.
Rated service life: due to the difference of manufacturing accuracy and material uniformity, even if the
same batch of caster bearings of the same material and size are used under the same working
conditions, their service life is also different. If the statistical life is 1 unit, the longest relative life is 4
units, the shortest is 0.1-0.2 units, and the ratio of the longest to the shortest life is 20-40 times. 90%
of caster bearings do not produce pitting corrosion, and the number of revolutions or hours
experienced is called the rated service life of caster bearings.
For basic dynamic load rating
1. Radial thrust caster bearing refers to the radial component that produces pure radial displacement
2. Radial caster bearing refers to pure radial load
3. Thrust ball caster bearing refers to pure axial load
Universal Caster Wheels Parameter
| Wheel material | Polyurethan |
| Load Capacity | 600KG |
| Wheel Diameter | 72mm |
| Color | white |
| purpose | Aluminum frame |
| Tread Width | 31mm |
| Load Height | 103.5+12MM |
Universal Caster Wheels Describe
Universal Caster Wheels Size
Universal Caster Wheels Material
| | Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
Universal Caster Wheels Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display manufacturing equipment,
conveyor belt, etc.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007. KTC is a modern
company specialzingin the production of multi function &high quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi District, Beijing. KTC
adopts international advanced production testing equipments, professional intelligent
production management system and professional design flow. Now the company produces
multi function & high quality production, such as KT CASTER and KT FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER, high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level adjusting FOOT
are widely used in the world's advanced automation equipment and semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC use the best processing
technology and equipment. And KTC continuously launches world top level of new products.
KTC's s also has set up a branch in Korea, so it is favored by theusers of various fields around
the world.
Product Tags:
|
|

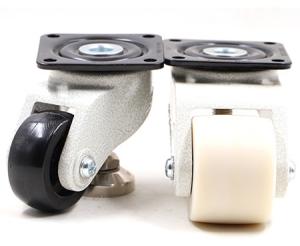

Aluminum Frame 600kg 3 Inch Polyurethane Casters Adjustable Levelling Castors Images
|
