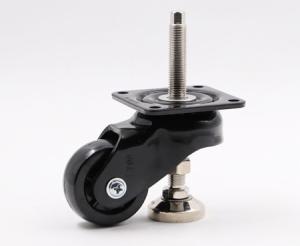

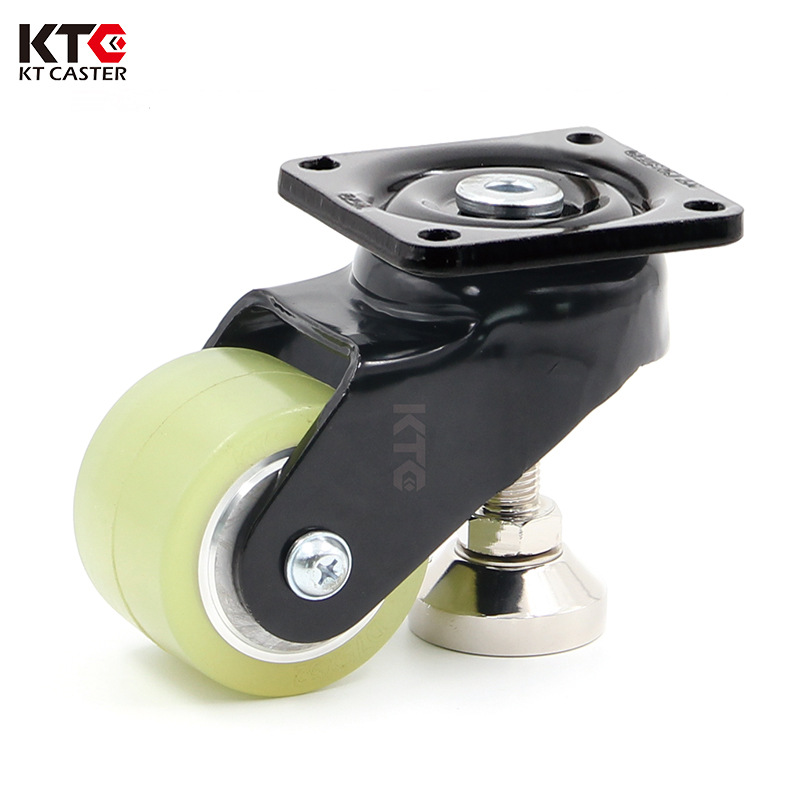

Conveyor belt Heavy 3 inches black Duty Retractable Casters KT-AP-700F
Selection of industrial castors
Industrial castors are widely used in all walks of life. Today, energetically explain to you how to
select industrial casters?
1. Wheel rotation flexibility: the larger the single wheel, the more labor-saving it will be when rotating.
The needle roller bearing can carry heavier load and has greater resistance when rotating; The
single wheel is equipped with high-quality ball bearing, which can carry heavy load, and the rotation
is more light, flexible and quiet.
2. Temperature condition of products: the applicable environment of severe cold and high temperature
has a great impact on casters. Select different materials according to different use environments.
3. First, choose the appropriate wheel materials: generally nylon, rubber, polyurethane, elastic rubber,
iron core coated polyurethane, cast iron, plastic and other materials. Different materials can be
selected according to different use environments!
4. Suitable caster support: the weight of casters should be considered in the selection of support.
The electroplated wheel frame made of 3-4mm thin steel plate is light, flexible, quiet and beautiful,
which is suitable for light cargo handling environments such as supermarkets, schools, hospitals,
office buildings and hotels;, The wheel frame of double row balls stamped, hot forged and welded
with 5-6 mm thick steel plate is suitable for factories, warehouses and other places; The wheel
frame is made of 8-12mm thick steel plate cut and welded, which is suitable for places such as
textile factory, automobile factory and machinery factory to carry heavy objects.
5. Bearing weight of casters: when selecting casters, you must know the self weight of transportation
equipment, maximum load and the number of casters used. There is a special formula for calculating
the bearing weight of casters. Strong casters teach you a simple calculation method. 4 casters
calculate the bearing capacity of 3 casters. Because at any time, there are always three wheels
landing at the same time.
6. Diameter of casters: Generally speaking, the larger the diameter of the wheel, the easier it is to
push, and the greater the load capacity, which can better protect the ground from damage.
The selection of wheel diameter should be determined by the load and the starting thrust of the
carrier under load.

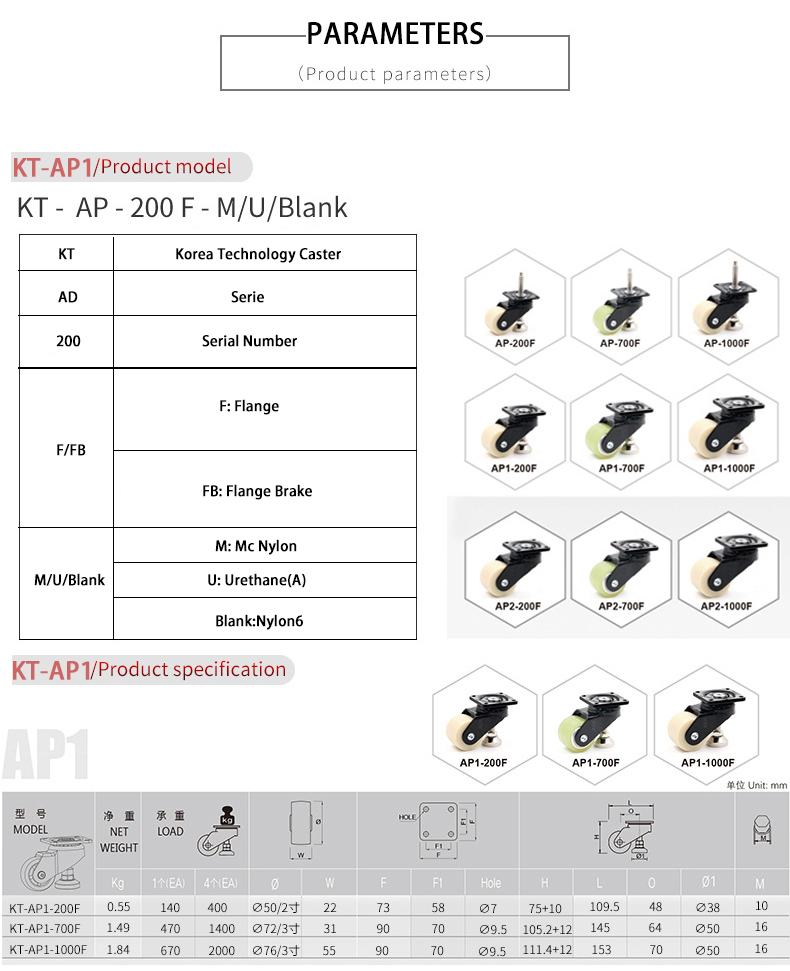

Universal Caster Wheels Parameter
| Wheel material | PA6 |
| Load Capacity | 470KG |
| Wheel Diameter | 72mm |
| Color | black |
| purpose | Aluminum frame |
| Tread Width | 31mm |
| Load Height | 145MM |
Universal Caster Wheels Describe
Universal Caster Wheels Size

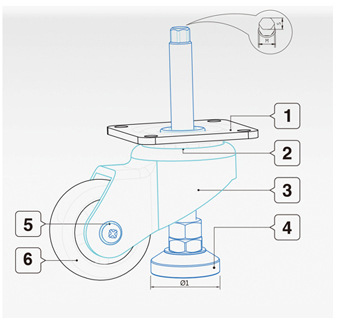

Universal Caster Wheels Material
| | Name | Material | Treatment |
| 1 | Caster Seat | SPC | Blank/Powder Coated |
| 2 | Ball | STB2 | Ni-Cr |
| 3 | Body | ALDC12 | Ivory/Powder Coated |
| 4 | Cup | ALDC12 | Ni |
| 5 | Brake | S45C | Zn Galvanized |
| 6 | Pin | S10C | Zn Galvanized |
| 7 | Wheel | PA6 | Black |
Universal Caster Wheels Scope of application
Application.
aluminum frame, automation equipment, semiconductor/display manufacturing equipment,
conveyor belt, etc.
About us.
KTC (Bejing Korea Technology Caster Co., Ltd.) was founded in 2007. KTC is a modern
company specialzingin the production of multi function &high quality CASTER and
KT FOOT based on best design and design technology.
KTC.
The company is headquartered in Niulanshan Industrial Zone,Shunyi District, Beijing. KTC
adopts international advanced production testing equipments, professional intelligent
production management system and professional design flow. Now the company produces
multi function & high quality production, such as KT CASTER and KT FOOT, among which
high quality of height adjusting CASTER,shockproof type CASTER, high quality of height
adjusting CASTER, shockproof type CASTER,high load CASTER and level adjusting FOOT
are widely used in the world's advanced automation equipment and semiconductor e
quipment industry.
In order to manufacture the world's highest level of products,KTC use the best processing
technology and equipment. And KTC continuously launches world top level of new products.
KTC's s also has set up a branch in Korea, so it is favored by theusers of various fields around
the world.
